To allow the DZMx to send e-mails, you need to set up the outgoing e-mail credentials.


To do t his You will need a laptop and Ethernet cable or WiFi to connect to the DZMx with DZMx Connect. You can find details on connecting to your DZMx here



  • Plug the ethernet cable into your laptop and the Ethernet port for the DZMx

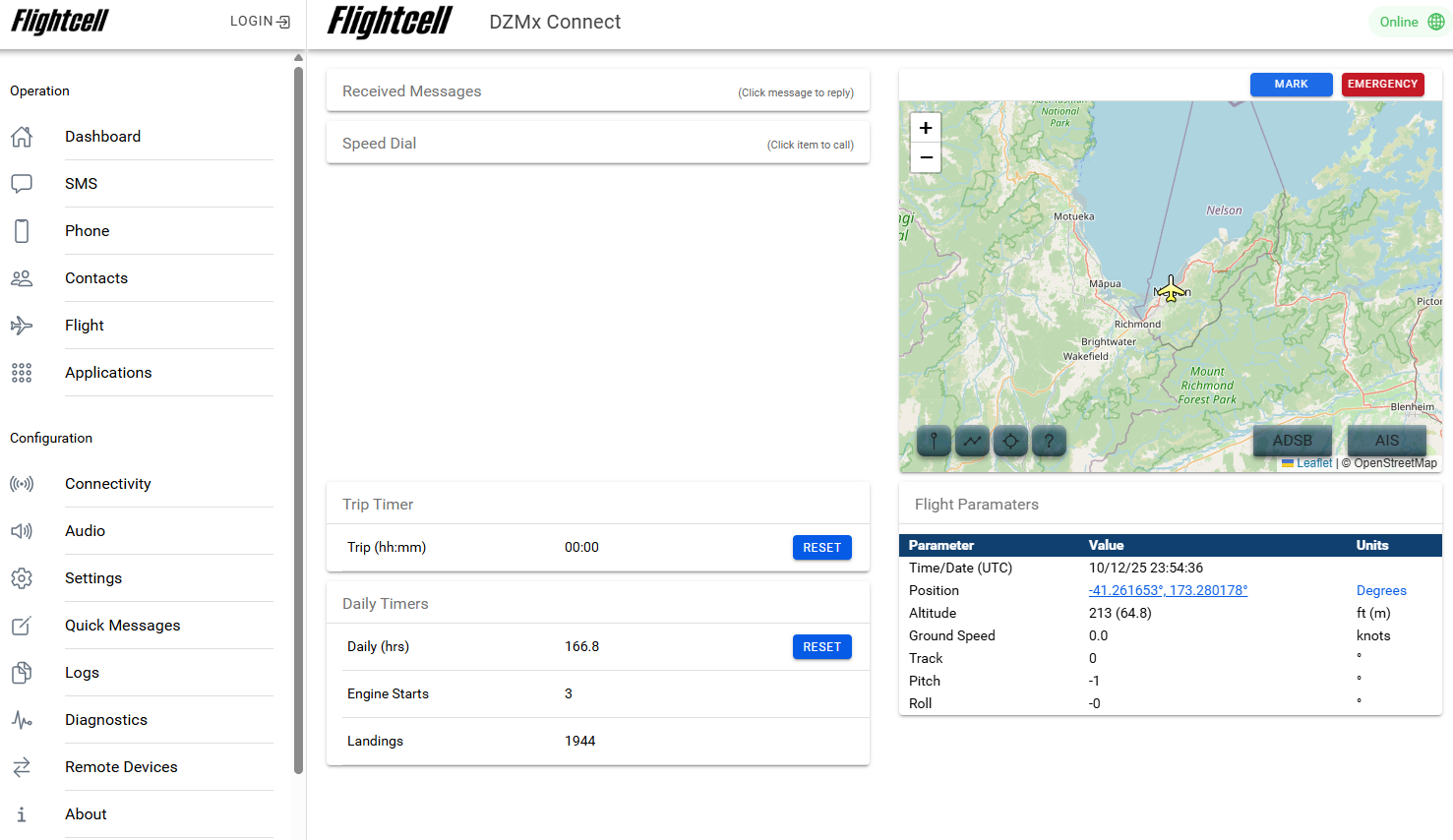

  • Open up a browser and enter the IP address for DZMx Connect into the address bar 192.168.4.1 or 192.168.2.1 if connecting via WiFi.

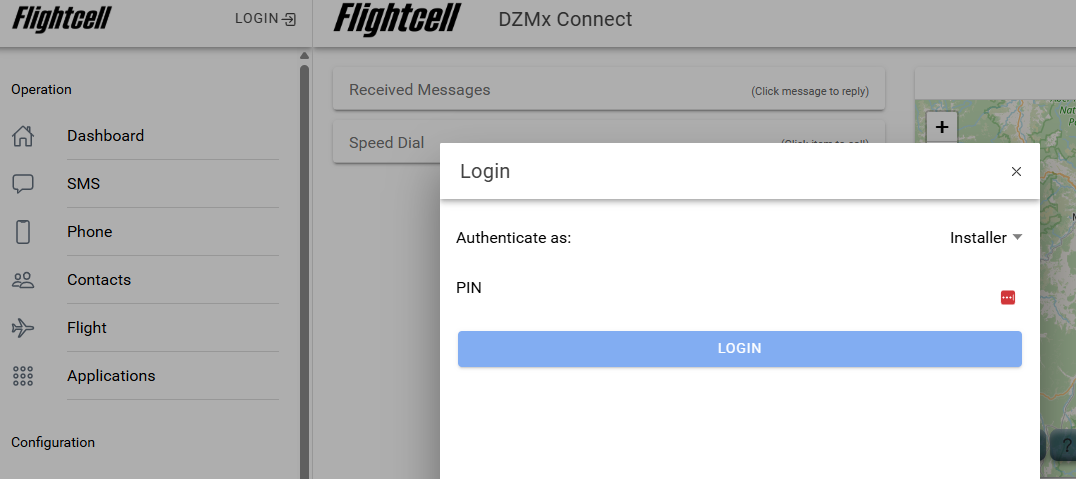

  • Press the "Login" button, select "Installer" and then enter the PIN number: 2468

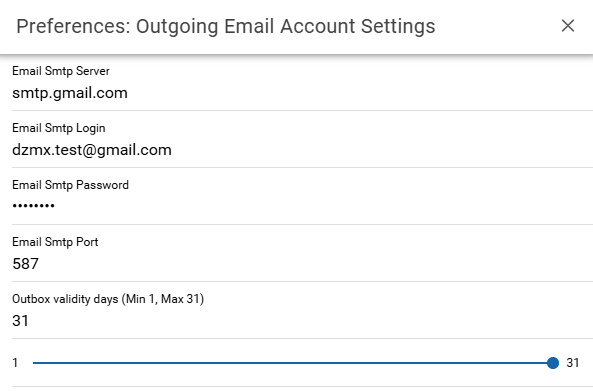

  • Access the Settings menu and expand the Preferences menu, select the Outgoing Email Account Settings menu
  • Enter the following details into the displayed fields:
    Settings -> Preferences -> Outoging Email Account
    SMTP server = smtp.gmail.com (e.g. for a gmail account)
    SMTP login = dzmx.test@gmail.com (replace with your address)
    SMTP password = gmail app password
    SMTP port = 587
    Outbox validity days: 31

  • Click “Done”
